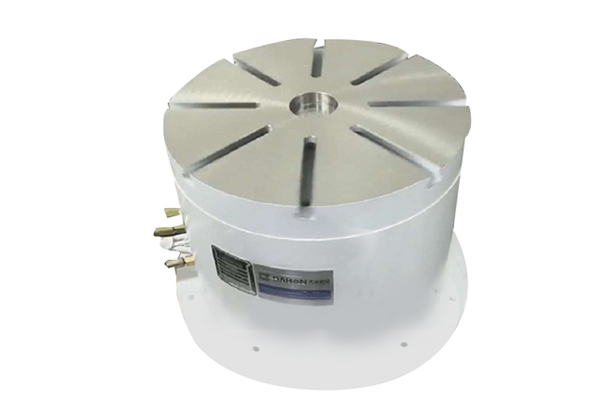

ZT62 CNC direct drive turntable

ZT62 CNC direct drive turntable
  • dahua


ZT62 CNC direct drive rotary table is directly driven by large torque torque motor, encoder as feedback signal, can achieve high precision rotary positioning, is the ideal supporting accessories for CNC boring and milling machine and machining center. When working, under the control of the relevant control system of the main machine, it can complete various indexing rotation movements coordinated with the main machine, and realize the continuous machining of equal and unequal holes and grooves and surfaces, and achieve high accuracy.

CNC turntable accuracy, high efficiency characteristics, make it in the machinery manufacturing industry much loved. In general, there are four important components of the CNC turntable, and today we will understand in detail what functions these four components have.

1, the brake tightening mechanism of the equal division of the turntable generally adopts hydraulic pressure, which exerts a certain pressure on the tooth disk of each other, so that the end tooth disk is reliably meshed and positioned.

2, the transmission has several ways of rack and gear transmission, worm and worm gear transmission, electric turntable is generally through a pair of gears to transfer the motor power to the worm, drive the turntable for dividing, hydraulic turntable, the transmission structure driven by hydraulic motor, similar to the electric turntable, the use of rack and pinion, It is divided by a rack driven by a piston to drive the relative fixed gear meshing with the mesa.

3. Drive. Hydraulic turntable adopts hydraulic drive rack or hydraulic motor, and provides power by means of rack drive gear or hydraulic motor drive gear.

4, indexing positioning equidividing turntable generally uses end tooth disc indexing positioning, arbitrary indexing turntable generally uses high-precision worm gear indexing positioning.
